EAS provides a complete offering of European-made products for the Passive House building community.
Passive House Institute Certified Products:
These products represent the state-of-the-art in energy performance, significantly exceeding even the most recent Energy Star and LEED guidelines. With triple-pane glass U-values as low as 0.07 Btu/(hr·ft²·F°) and frame U-values of 0.13 Btu/(hr·ft²·F°), we provide the highest efficiency fenestration products in the US.
|
| |
MW88G2 |
AluInside |
AWS 90 |
|
| Description |
PHI Certified All-Wood Windows |
PHI Certified uPVC Windows |
PHI Certified Aluminum Windows |
|
| Manufacturer |
Makrowin |
Schuco |
Schuco |
|
Frame Width
(below/above/sides) |
5.937 / 5.154 / 5.154 |
4.72 |
4.61 |
in |
Uf-Value Frame
(below/above/sides) |
0.141 / 0.132 / 0.132 |
0.133 / 0.134 / 0.134 |
0.176 / 0.176 / 0.176 |
Btu/(hr·ft2·F) |
Ψ-Spacer
(below/above/sides) |
0.017 |
0.016 |
- |
Btu/(hr·ft2·F) |
| Uf-Value Frame |
0.134 |
0.133 |
0.176 |
Btu/(hr·ft2·F) |
| Ucog-Value Glass |
0.088 |
0.088 |
0.088 |
Btu/(hr·ft2·F) |
| Uw-Value Window |
0.116 |
0.114 |
0.128 |
Btu/(hr·ft2·F) |
|
|
Products Satisfying Passive House Requirements:
These products, although not certified by the Passive House Institute, significantly exceede the most recent Energy Star and LEED guidelines and satisfy the passive house suitable component criteria of Uw ≤ 0.141 Btu/(hr·ft²·F°) and Uw,installed ≤ 0.150 Btu/(hr·ft²·F°).
|
| |
MW88 |
MW88-Classic |
SI 82 |
|
| Description |
Passive House Spec All-Wood Windows |
Passive House Spec Aluminum-Clad Wood Windows |
Passive House Spec Best-Value uPVC Windows |
|
| Manufacturer |
Makrowin |
Makrowin |
Schuco |
|
Frame Width
(below/above/sides) |
5.315 / 4.685 / 4.685 |
4.685 / 4.685 / 4.685 |
4.72 |
in |
Uf-Value Frame
(below/above/sides) |
0.192 / 0.173 / 0.173 |
0.187 / 0.184 / 0.184 |
0.194 / 0.194 / 0.194 |
Btu/(hr·ft2·F) |
Ψ-Spacer
(below/above/sides) |
0.017 |
0.018 |
0.016 |
Btu/(hr·ft2·F) |
| Uf-Value Frame |
0.178 |
0.185 |
0.194 |
Btu/(hr·ft2·F) |
| Ucog-Value Glass |
0.088 |
0.088 |
0.088 |
Btu/(hr·ft2·F) |
| Uw-Value Window |
0.129 |
0.131 |
0.134 |
Btu/(hr·ft2·F) |
|
|
|

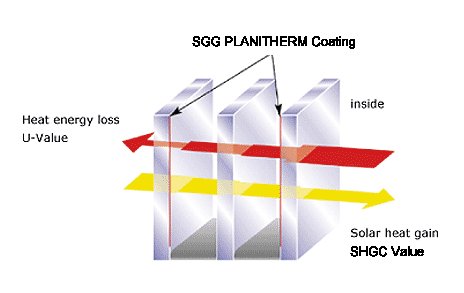

Passive House projects require windows with a unique combination of low U-values and high SHGC (Solar Heat Gain Coefficient). It is difficult to manufacture insulated glass assemblies that are both low in thermal transfer and high in solar heat gain. Our CLIMATOP LUX glass offers a U-value of 0.105 Btu/(hr·ft²·F°) and SHGC of 0.62, making it by far the best Passive House combination in the industry.
Glass Name | Fill | Type | Depth | Ug | SHGC | VT | R-Value |
| 90% | | [mm] | [Btu/(hr·ft2·F)] | [ ] | [ ] | [hr·ft2·F/Btu] |
CLIMAPLUS ONE |
Argon |
double |
24 |
0.176 |
0.48 |
0.72 |
R-6 |
CLIMAPLUS XN |
Argon |
double |
24 |
0.194 |
0.63 |
0.80 |
R-5 |
CLIMATOP COOL-LITE SKN176/ONE |
Argon |
triple |
44 |
0.105 |
0.26 |
0.56 |
R-10 |
CLIMATOP ONE |
Argon |
triple |
44 |
0.088 |
0.34 |
0.58 |
R-11 |
CLIMATOP XN |
Argon |
triple |
44 |
0.105 |
0.54 |
0.74 |
R-10 |
CLIMATOP ECLAZ |
Argon |
triple |
44 |
0.105 |
0.60 |
0.77 |
R-10 |
| NOTE: Listed insulated glass options are 'all glass' assemblies. Due to warranty concerns we do not use suspended film assemblies. The middle pane is always made of glass. |
|
|
Download the Passive House Window and Glass Specification Sheet [0.6 MB PDF file].
|
